| Model |
D302A-G-BK-v1, D302A-G-WT-v1 |
| Case Type |
Mini Tower |
| Color |
Black, White |
| Body Material |
SPCC |
| Front Panel Material |
ABS, SPCC |
| Steel Thickness |
0.5mm |
| Motherboards |
Micro ATX / Mini-ITX |
| Case Dimensions (Internal) |
225 × 430 × 415 mm (W × H × D) |
| Case Dimensions (Overall) |
225 × 444 × 463.8 mm (W × H × D) |
| 3.5" Drive Bays |
3 Max. (1×3.5" and 2×3.5"/2.5") |
| 2.5" Drive Bays |
3 Max. (1×2.5" and 2×2.5"/3.5") |
| Expansion Slots |
5 |
| GPU Clearance |
Supports GPU up to 410mm (W/O front radiator) |
| CPU Cooler Clearance |
Supports CPU cooler up to 166mm |
| Air Cooling |

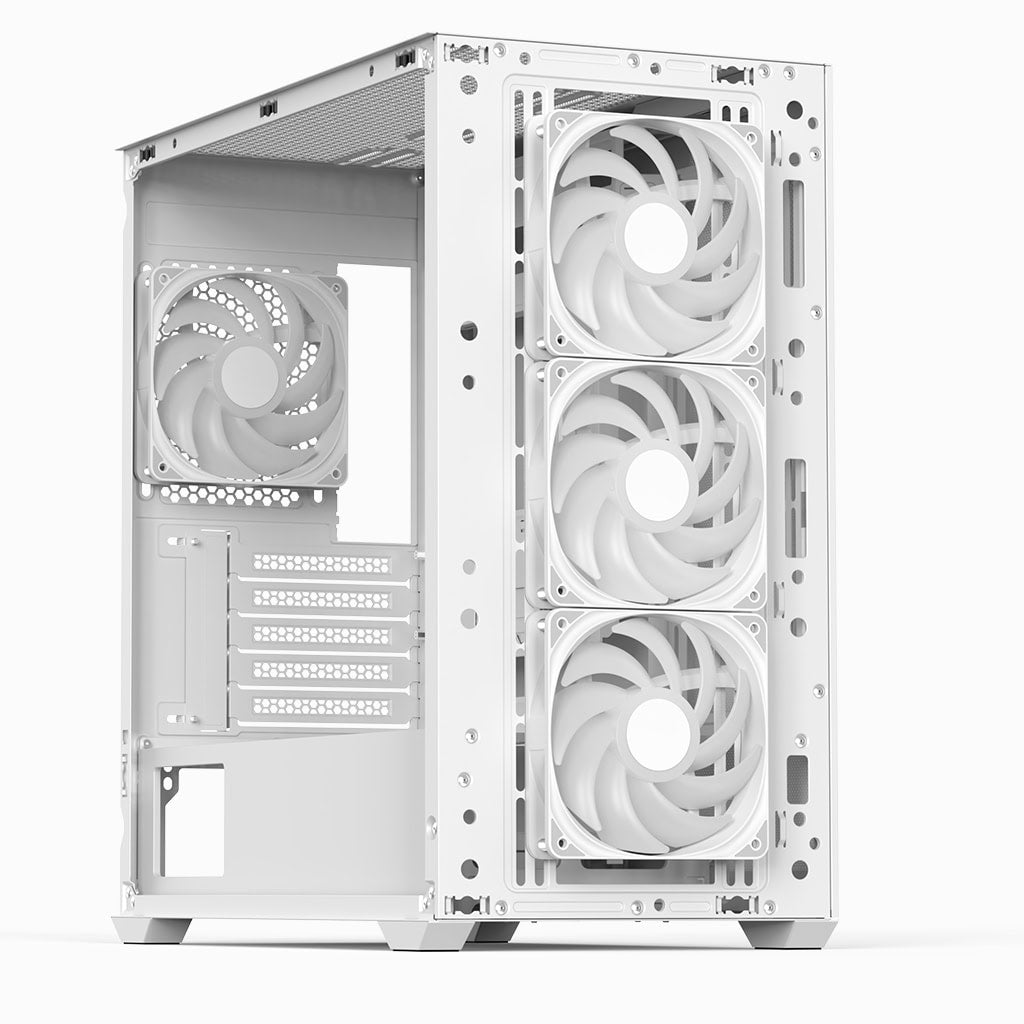

Front: 120mm × 3 or 140mm × 2 (Max.) (120mm ARGB fan × 3 included)Top: 120mm × 3 or 140mm × 2 (Max.)Side: 120mm × 2 or 140mm × 2 (Max.)PSU Shroud: 120mm × 2 (Max.)Rear: 120mm × 1 (Max.) (120mm ARGB fan × 1 included) |
| Liquid Cooling |
Front: 120/140/240/280/360mm Radiator (Optional)Top: 120/140/240/280/360mm Radiator (Optional)Rear: 120mm Radiator (Optional) |
| I/O Ports |
Type-C ×1 ∣ USB 3.0 ×2 ∣ HD Audio & Mic |
| Internal Cable Management Depth |
36mm |
| Power Supply |
ATX PSU (Including cables, up to 230mm) (Optional) |
