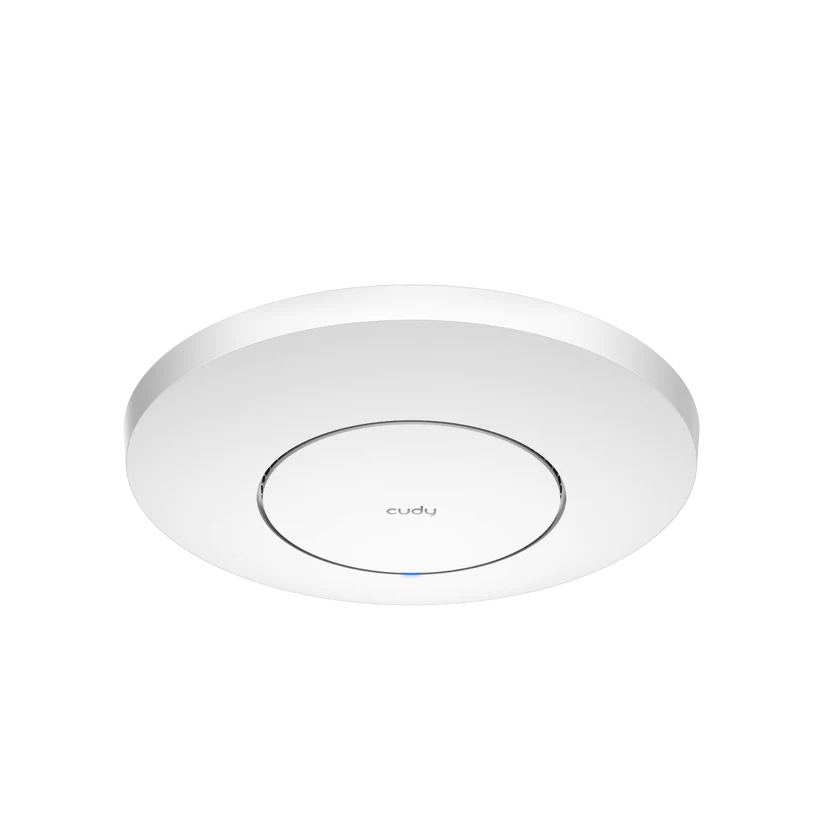

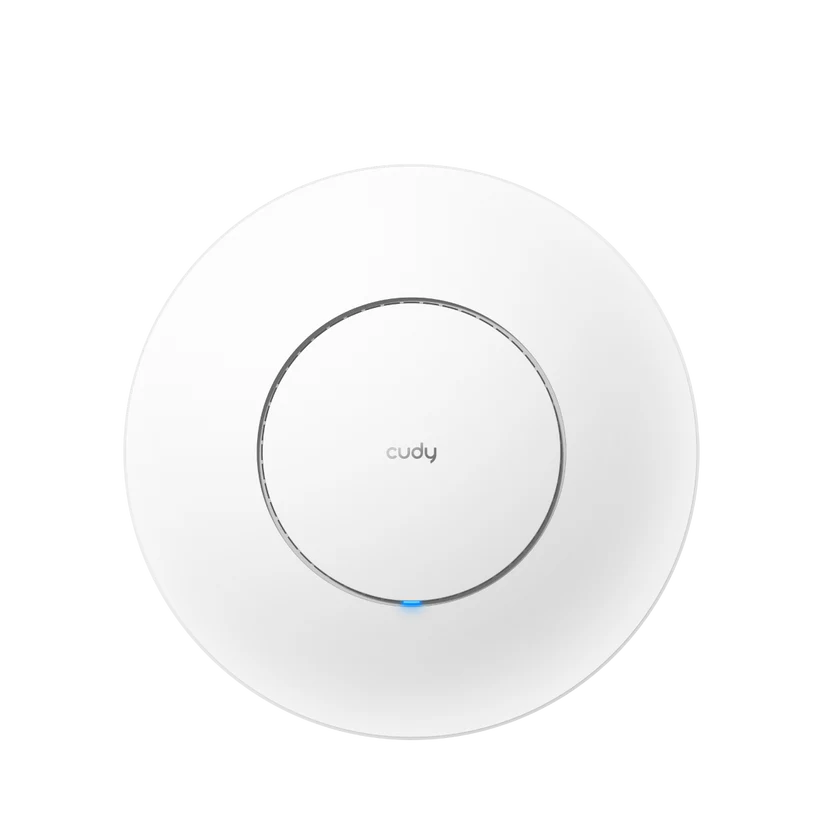

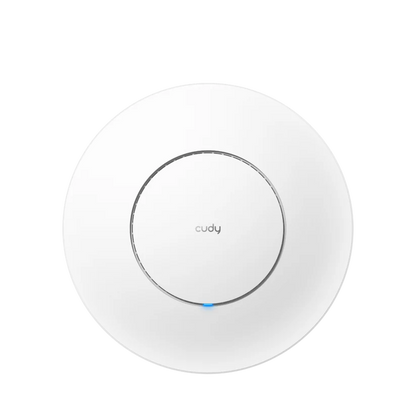

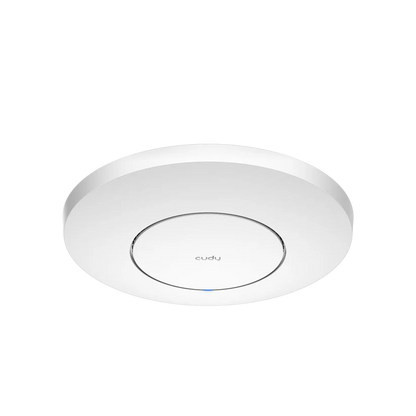

CUDY AP3000 AX3000 2.5G Wi-Fi 6 Access Point wall/ceiling-mounted
CUDY AP3000 AX3000 2.5G Wi-Fi 6 Access Point wall/ceiling-mounted
Regular price
90.000 JOD
Regular price
Sale price
90.000 JOD
Quantity
Couldn't load pickup availability
⚙️ Hardware Specifications — AP3000 1.0
| Category | Item | Specification / Details |
|---|---|---|
| Model Version | AP3000 1.0 | |
| CPU | CPU Details | 1.3 GHz Dual-Core CPU |
| Memory / Storage | Flash / ROM | 256 MB (2 Gbit) NAND |
| DDR / RAM | 512 MB (4 Gbit) DDR4 | |
| Wireless | 5 GHz Wi-Fi Speed | 2402 Mbps |
| 2.4 GHz Wi-Fi Speed | 574 Mbps | |
| 5 GHz Wi-Fi Streams | 3T3R (3×3 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 5 × Internal | |
| FEM or PA/LNA | 5 GHz: 3 × External 2.4 GHz: 2 × External |
|
| Beamforming | Supported (True) | |
| Range Performance | Max: 200 m (656 ft) Tested in open-space environments with minimal interference. Actual Wi-Fi range may vary depending on layout and wall materials. |
|
| Wall Performance | Two wooden walls (<10 cm / 4") One concrete wall (<20 cm / 7") or two concrete walls (<10 cm / 4") |
|

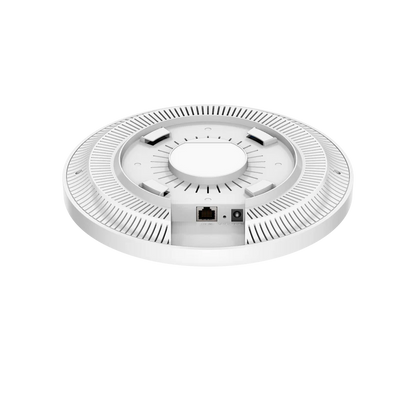

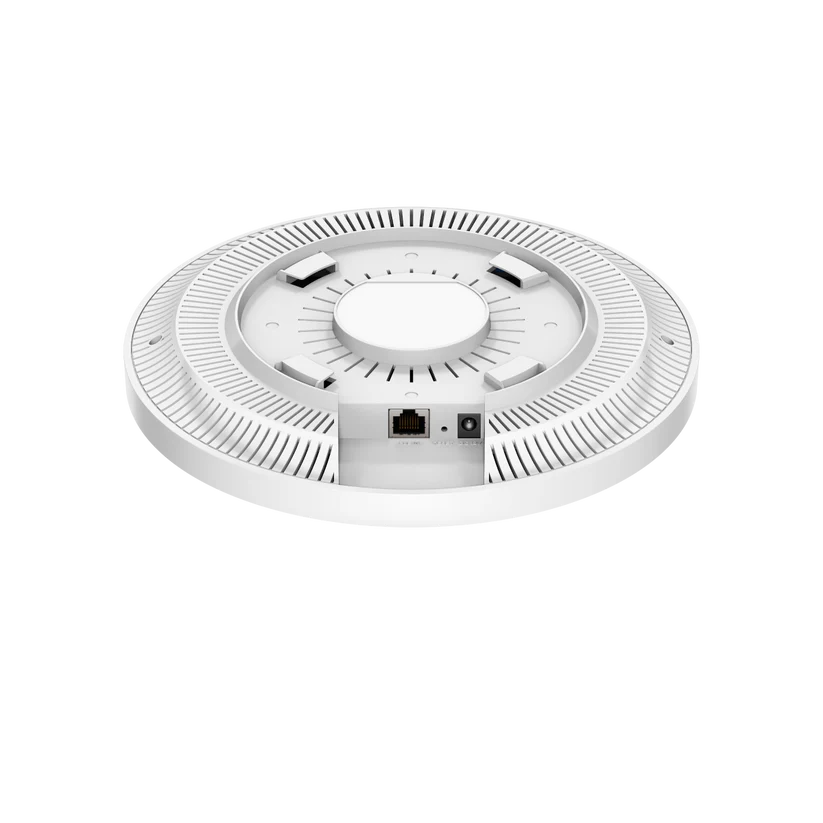

| Interfaces | 2.5G RJ45 Port | 1 port |
| Ethernet Notes | Supports PoE powering | |
| LED Indicators | System | |
| Physical Buttons | Reset Button | |
| Power | Power Input | DC Jack, PoE via Ethernet Port |
| Power Methods | DC / 802.3at/af PoE / Passive PoE | |
| DC Input | 12V 1.5A | |
| Passive PoE Input | 48–57V | |
| Power Adapter |
AP3000: DC Adapter (in box) Input: 100–240 V, 50/60 Hz AC Output: 12V 1.5A DC AP3000_P: PoE Adapter (in box) Input: 100–240 V, 50/60 Hz AC Output: 48V Passive PoE |
|
| Max Power Consumption | 12 W (48V PoE or DC) | |
| Idle Power Consumption | 6.1 W (48V PoE or DC) | |
| Reliability | Advanced Features | Hardware Watchdog |
| EMC | ESD: Contact: 4kV; Air: 8kV | |
| Operating Environment | -10°C ~ 60°C (14°F ~ 140°F) | |
| Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) | |
| Operating Humidity | 10% ~ 90% non-condensing | |
| Storage Humidity | 5% ~ 90% non-condensing | |
| Certifications | FCC, CE | |

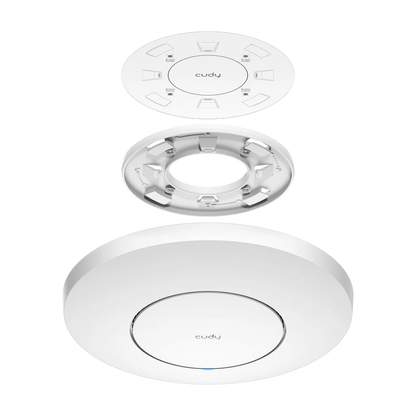

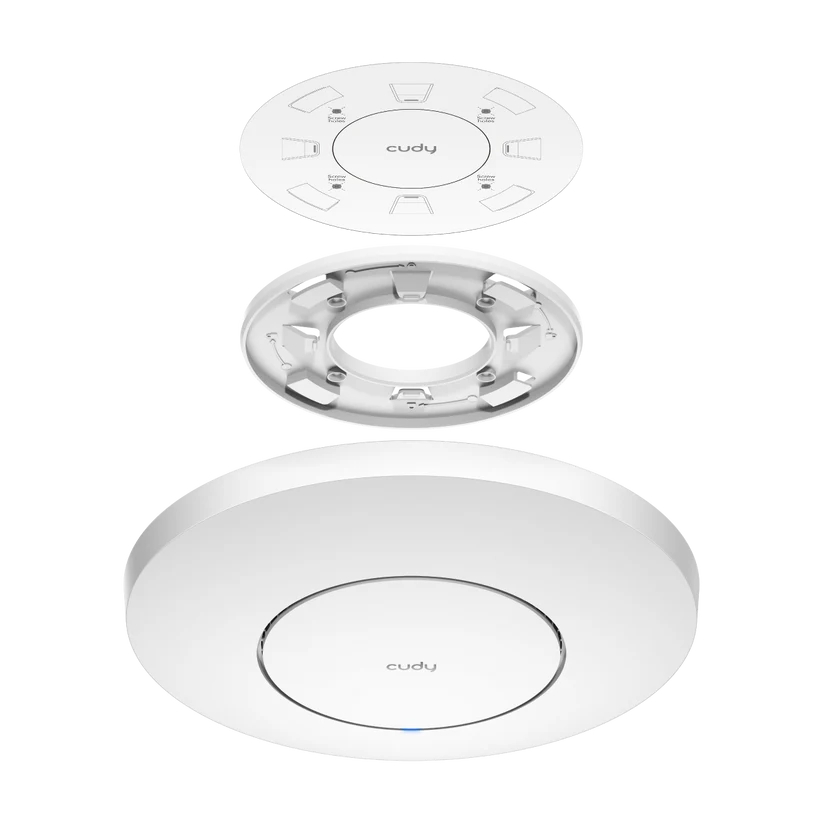

| Mechanical | Installation | Wall-mount / Ceiling-mount |
| Dimensions | Φ231.9 × 57.1 mm (Φ9.13 × 2.25 in) | |
| Product Weight | 494 g (17.43 oz) | |

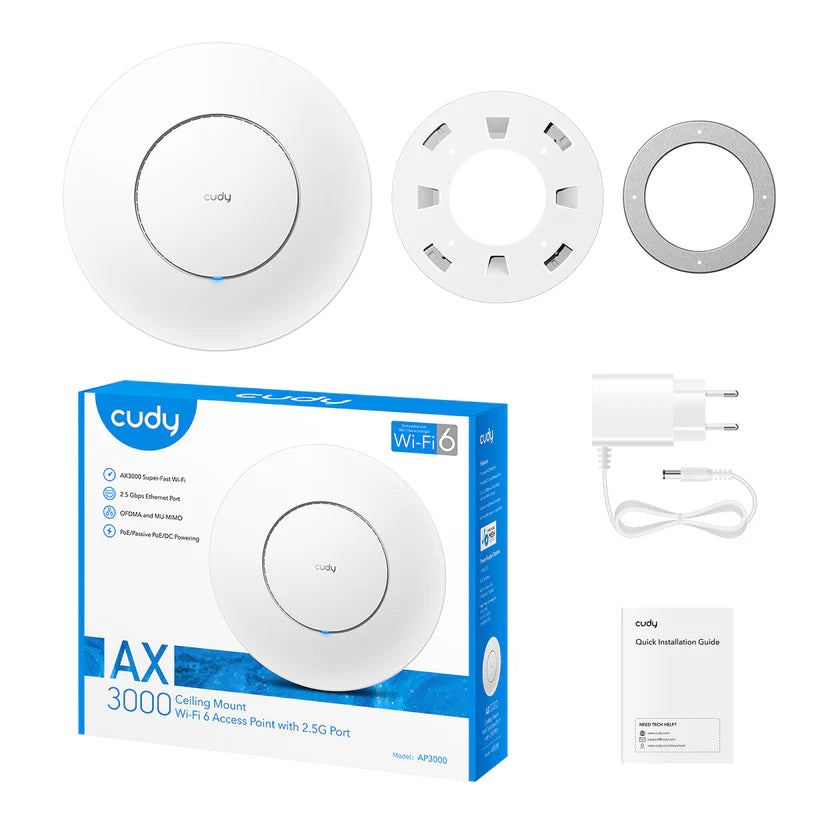

| Package Contents | AP3000 Unit Power Adapter Mounting Kit Ethernet Cable Installation Guide |
|
| Ordering Information | Retail Package Weight | With PoE Adapter (EU): 1015 g (35.8 oz) With DC Adapter (EU): 941 g (33.19 oz) |
| Retail Package Dimensions | 283 × 238 × 68 mm (11.14 × 9.37 × 2.68 in) | |
| Units per Carton | 20 | |
| Carton Net Weight | With PoE Adapter (EU): 20.3 kg (44.75 lbs) With DC Adapter (EU): 18.8 kg (41.45 lbs) With DC Adapter (UK): 19 kg (41.89 lbs) |
|
| Carton Gross Weight | With PoE Adapter (EU): 21.7 kg (47.84 lbs) With DC Adapter (EU): 20.0 kg (44.09 lbs) With DC Adapter (UK): 20.2 kg (44.53 lbs) |
|
| Carton Dimensions | 58 × 37.5 × 49.5 cm (22.83 × 14.76 × 19.49 in) |
💻 Software Specifications — AP3000 1.0
| Category | Item | Specification / Details |
|---|---|---|
| Model Version | AP3000 1.0 | |
| Wireless | Wi-Fi Standards | Wi-Fi 6 |
| Max Wi-Fi Modulation | 1024-QAM | |
| Wi-Fi Efficiency | OFDMA, MU-MIMO, BSS Color | |
| Max Capacity | 256 devices | |
| Recommended Client Upper Limit | 100 devices | |
| Max Wi-Fi Channel Width | 160 MHz | |
| Wi-Fi Security | WPA / WPA2 / WPA3 | |
| WPS | Supported | |
| General | Operation Modes | Wi-Fi Router, Access Point, Range Extender, WISP, Client |
| Mesh | Cudy Mesh | |
| Mesh Backhaul | Wireless / Wired / Multi-Band Backhaul | |
| WAN Modes | DHCP, Static IP, PPPoE, PPTP, L2TP | |
| Internet Failover Sequence | WAN → WISP | |
| Network | QoS | Per-User Rate Limiting |
| DHCP | Server, Client List, Address Reservation | |
| IP Versions | IPv4 / IPv6 | |
| IPv6 Protocols | Relay, Dynamic (SLAAC / DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite | |
| IPTV / VLAN | Bridge, Tag VLAN, VoIP VLAN, IPTV VLAN | |
| TTL Customization | Extend, Spoof, Custom | |
| IGMP | Proxy, Snooping | |
| Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ | |
| Firewall | SPI Firewall, DoS Protection, Block PING | |
| Application Layer Gateway | IPSec, L2TP, PPTP, FTP, TFTP, H323, SIP, RTSP Passthrough | |
| Utilities | Captive Portal | Supported |
| VPN Server | WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP | |
| VPN Client | WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP | |
| DNS Options | DNS over TLS, Manual DNS, Rebind Protection, Override Clients’ DNS | |
| DNS over TLS Providers | Cloudflare, Google, Quad9, Custom | |
| Wake on LAN | Supported | |
| Online Detection | Supported | |
| Management | All Devices Management | Wi-Fi Schedule, MAC Filter, IP/MAC Binding |
| Per-Device Management | Internet/VPN On-Off, Online Time Schedule, Device Rename | |
| Content Management | Domain Filter, IP Filter | |
| LED Control | Supported | |
| Local Control Methods | Config Web Page, App Control | |
| Remote Control Methods | Config via HTTPS, App Control, TR069/TR098/TR111/TR143/TR181 | |
| Firmware Upgrade | Local Update, App (Over the Air), Online Update | |
| Reliability | Maintenance | Timed Reboot, Backup & Restore |
| Diagnostic Tools | Diagnosis, Ping, Traceroute, NSLookup, System Log | |
| Languages Supported | English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese | |
| Dashboard | Panel Display | Internet Status, Mesh Status, Device Management, WAN/LAN/WISP/Wi-Fi/VPN/DHCP Status, System Version |
| Charts | Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed |
⚠️ Notes:
-
Actual Wi-Fi performance depends on environmental factors, interference, and connected device capabilities.
-
Wi-Fi efficiency (OFDMA, MU-MIMO, BSS Color) requires compatible client devices.
-
For optimal coverage and stability, place the AP3000 in a central, unobstructed location.
