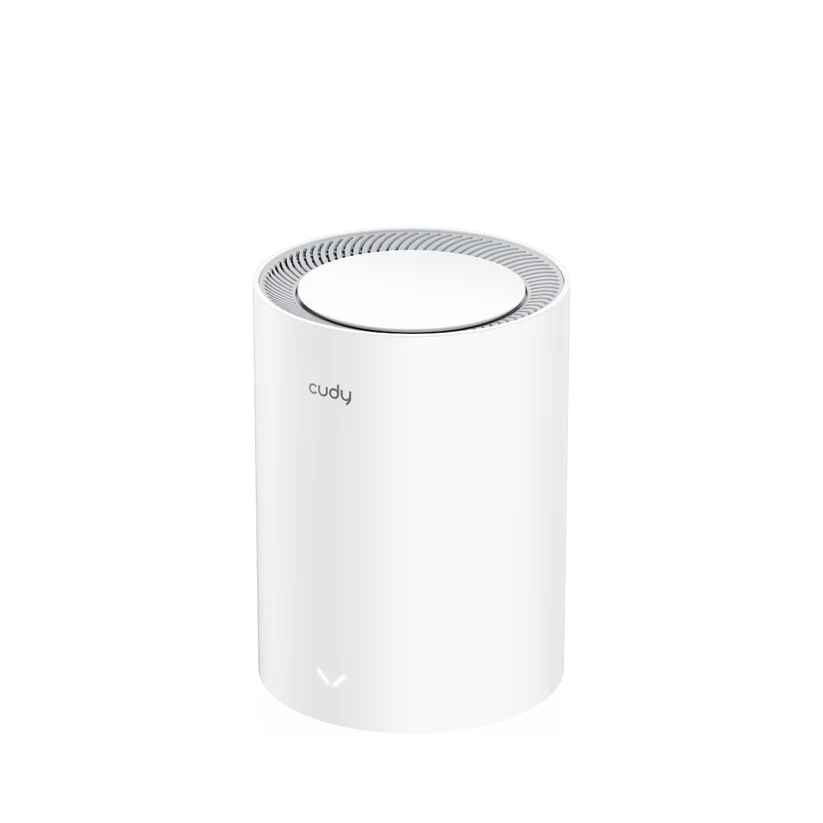

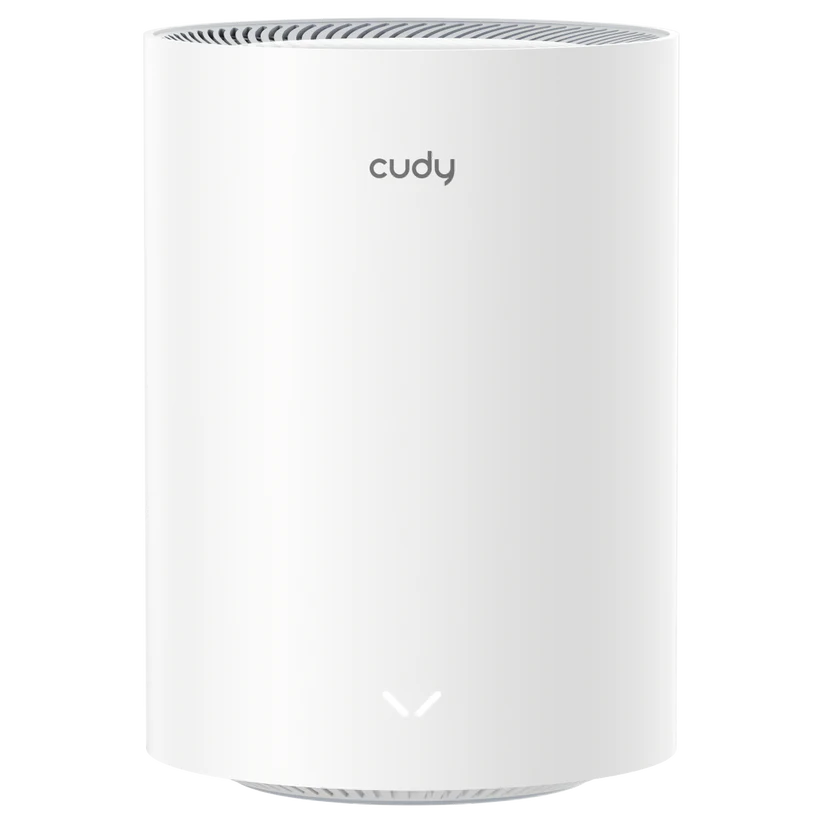

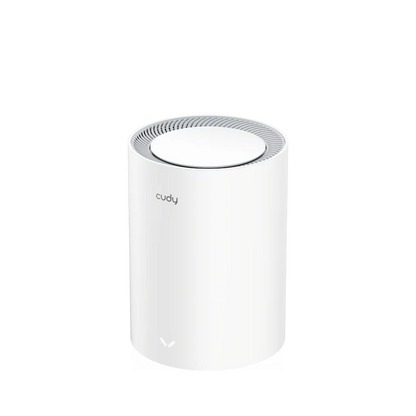

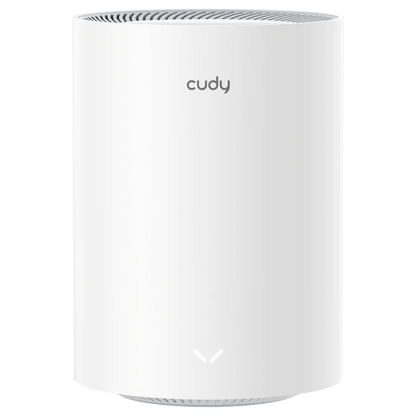

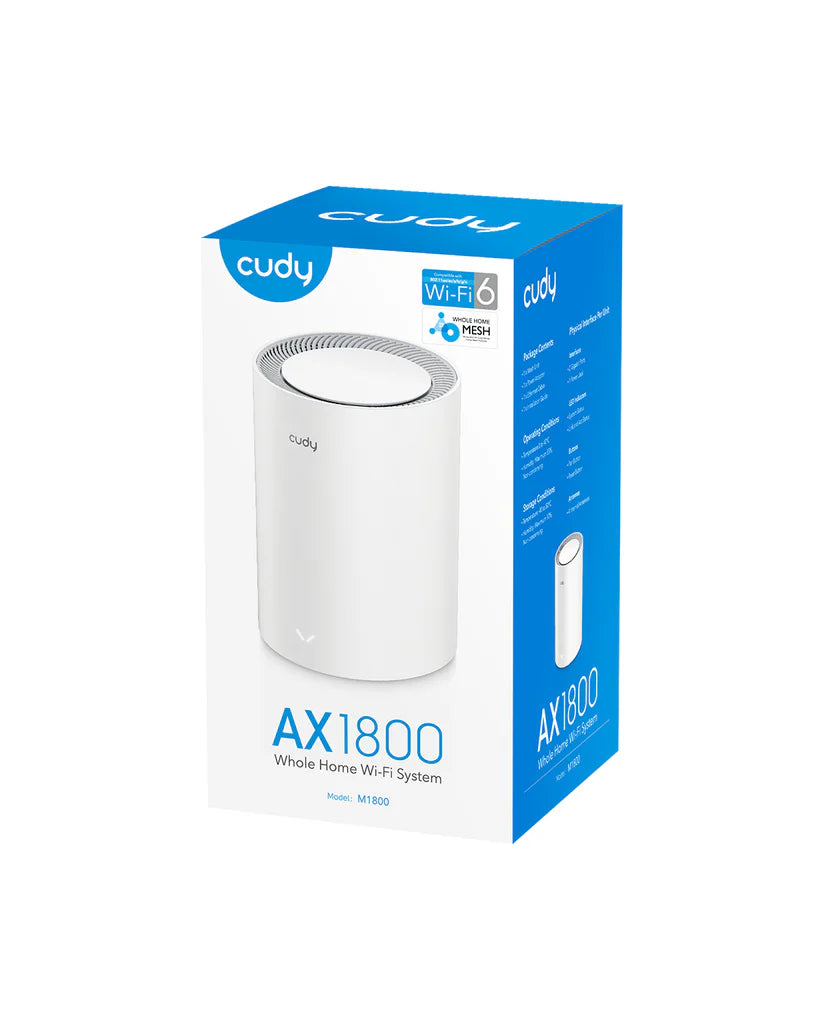

CUDY M1800 AX1800 Gigabit Mesh Wi-Fi 6 Whole Home WiFi System
CUDY M1800 AX1800 Gigabit Mesh Wi-Fi 6 Whole Home WiFi System
Regular price
70.000 JOD
Regular price
Sale price
70.000 JOD
Quantity
Couldn't load pickup availability
Hardware Specifications – M1800 2.0
| Category | Specification |
|---|---|
| Model Version | M1800 2.0 |
| CPU | 880 MHz Dual-Core, MIPS1004Kc |
| Memory / Storage | Flash: 16 MB (128 Mbit) NOR RAM: 256 MB (2 Gbit) DDR3 |
| Wireless | 5 GHz Speed: 1201 Mbps 2.4 GHz Speed: 574 Mbps |
| Wi-Fi Streams | 5 GHz: 2T2R (2×2 MIMO) 2.4 GHz: 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 4× Internal Antennas |
| FEM or PA/LNA | 5 GHz: 2× Internal 2.4 GHz: 2× Internal |
| Beamforming | Supported (True) |
| Range Performance | Max: 170 m (558 ft) — Tested in open-space environments with minimal interference. Actual range may vary depending on walls and materials. |
| Wall Performance | - Two wooden walls (<10 cm / 4") - One concrete wall (<20 cm / 7") |
| Indoor Coverage Reference | 2 Pack: 170 m² (1800 sq ft) 3 Pack: 230 m² (2500 sq ft) (For wireless backhaul placement — center of each floor, max two obstacles per room) |

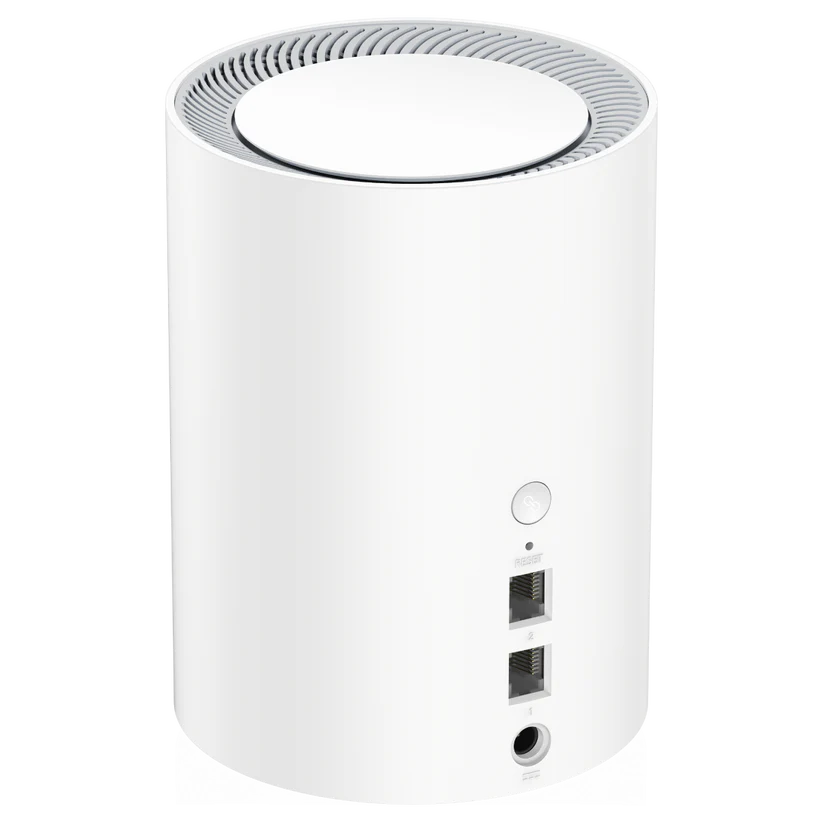

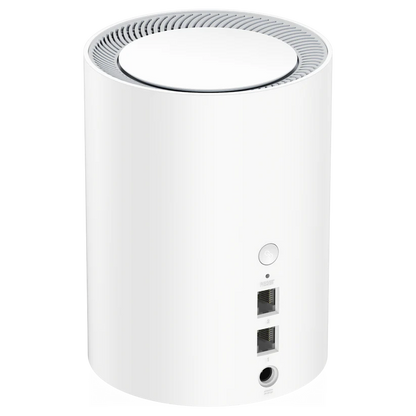

| Interfaces | 2× Gigabit RJ45 Ports (Port 1 is WAN by default; all ports act as LAN in Mesh satellite mode) |
| LED Indicators | System, Speed/Link/Activity (Ethernet Port) |
| Physical Buttons | WPS Button, Reset Button |
| Power Input | DC Jack |
| Power Specifications | Method: DC Input Input: 100–240V AC, 50/60Hz Output: 12V 1A DC |
| Reliability / Environment | Operating Temp: 0°C ~ 40°C (32°F ~104°F) Storage Temp: -40°C ~ 70°C (-40°F ~158°F) Humidity: 10%–90% (non-condensing) Storage Humidity: 5%–95% (non-condensing) |
| Certifications | FCC, CE |
| Mechanical / Installation | Desktop Placement |
| Dimensions | Φ110 × 154.5 mm (Φ4.33 × 6.08 in) |
| Product Weight | 358 g (12.63 oz) |

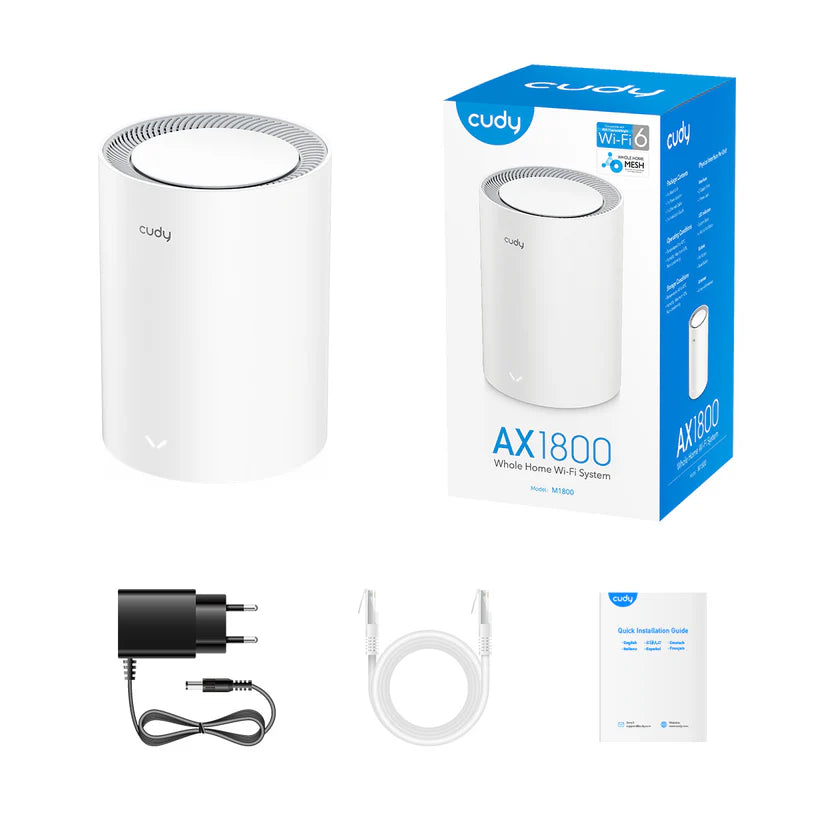

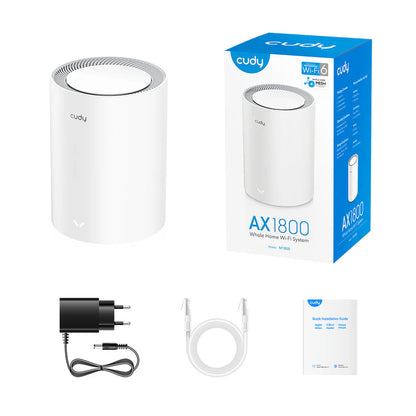

| Package Contents | M1800 Unit Power Adapter Ethernet Cable Installation Guide |
Software Specifications – M1800 2.0
| Category | Specification |
|---|---|
| Model Version | M1800 2.0 |
| Wireless | |
| Wi-Fi Standards | Wi-Fi 6 |
| Max Wi-Fi Modulation | 1024-QAM |
| Wi-Fi Efficiency | OFDMA, MU-MIMO, BSS Color |
| Max Capacity | 256 Devices |
| Recommended Client Upper Limit | 100 Devices |
| Max Wi-Fi Channel Width | 80 MHz |
| Wi-Fi Security | WPA / WPA2 / WPA3 |
| Guest Network | 2.4 GHz, 5 GHz |
| WPS | Supported (True) |
| General Operation Modes | Wi-Fi Router, Access Point, Range Extender, WISP, Client |
| Mesh | Cudy Mesh |
| Mesh Backhaul | Wireless Backhaul, Wired Backhaul |
| Multi-Band Backhaul | Supported (True) |
| WAN Modes | DHCP, Static IP, PPPoE, PPTP, L2TP |
| Network Features | |
| QoS | Per-User Rate Limiting |
| DHCP | Address Reservation, DHCP Client List, Server |
| IP Versions | IPv4 / IPv6 |
| IPv6 Protocols | Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite |
| IPTV/VLAN | Bridge, Tag VLAN, VoIP VLAN, IPTV VLAN |
| TTL Customization | Extend, Spoof, Custom |
| IGMP | Proxy, Snooping |
| Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
| Firewall | SPI Firewall, DoS Protection, Block PING |
| Application Layer Gateway | IPSec, L2TP, PPTP, FTP, TFTP, H323, SIP, RTSP Passthrough |
| Utilities – VPN Server | WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP |
| Utilities – VPN Client | WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP |
| DNS Options | DNS over TLS, Manual DNS, Rebind Protection, Override Clients’ DNS |
| DNS over TLS Providers | Cloudflare, Google, Quad9, Custom |
| Wake on LAN | Supported (True) |
| Online Detection | Supported (True) |
| Management Features | |
| Parental Controls | Profile Settings, Offline/Online Time, Pause Internet, Web Filter |
| All Devices Management | Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding |
| Per-Device Management | Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename |
| Content Management | Domain Filter, IP Filter |
| System Management | |
| LED Control | Supported (True) |
| Local Control Methods | Config Web Page, App Control |
| Remote Control Methods | HTTPS Config Page, App Control, TR069/TR098/TR111/TR143/TR181 |
| Firmware Upgrade | Local Update, App (OTA), Online Update |
| Reliability | Timed Reboot, Backup & Restore |
| Diagnostic Tools | Diagnosis, Ping, Traceroute, NSLookup, System Log |
| Languages Supported | English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese |
| Dashboard / Panel Features | Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version |
| Dashboard Charts | Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed |
