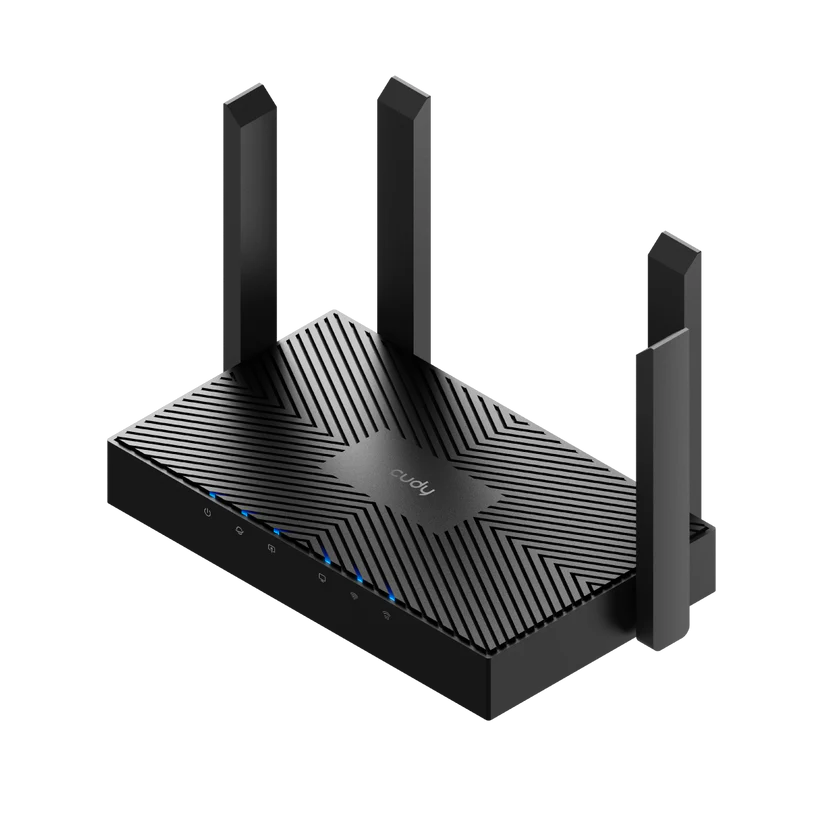

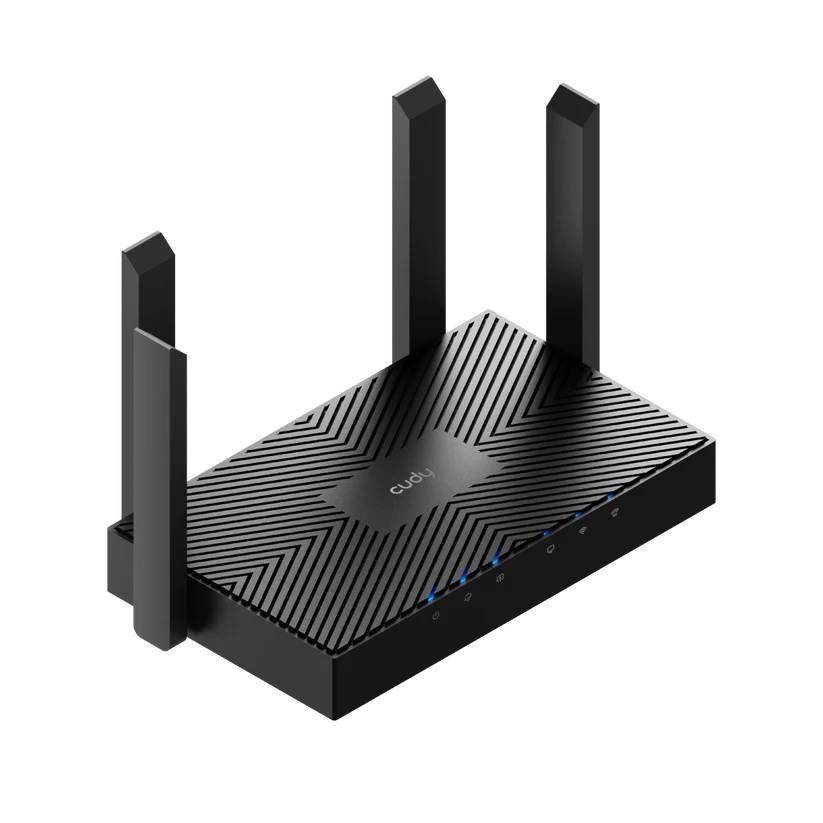

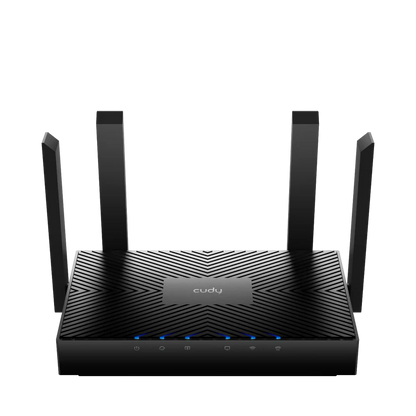

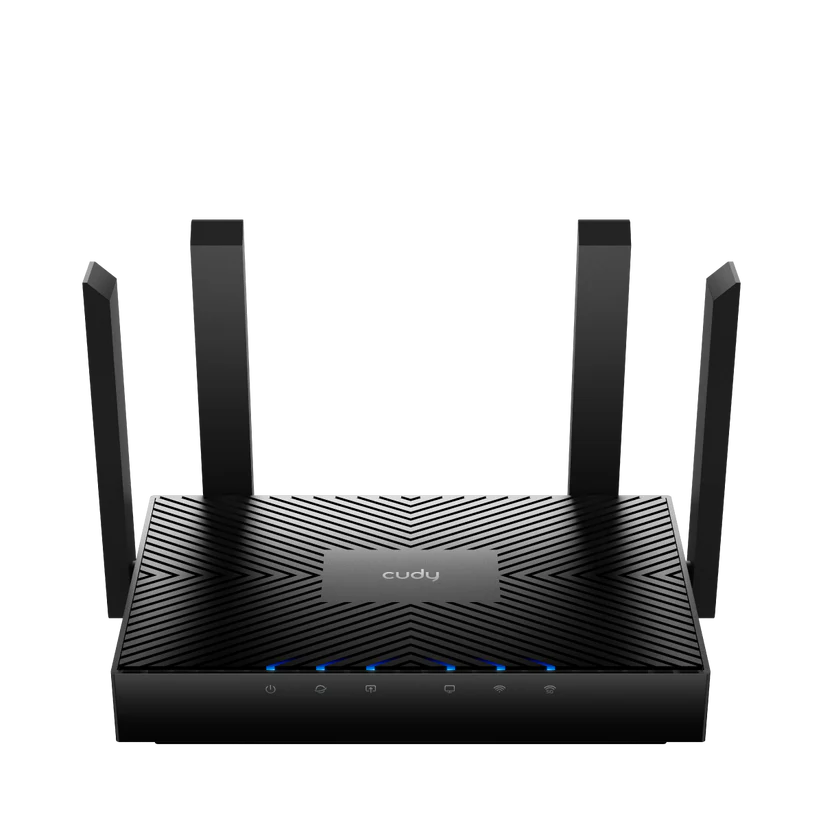

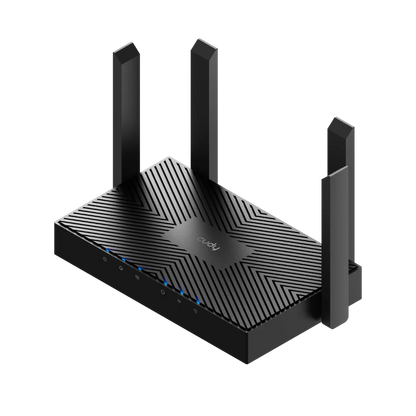

CUDY WR3000 AX3000 Gigabit Mesh WiFi 6 Router
CUDY WR3000 AX3000 Gigabit Mesh WiFi 6 Router
Regular price
70.000 JOD
Regular price
Sale price
70.000 JOD
Quantity
Couldn't load pickup availability
WR3000 1.0 — Hardware Specifications
| Category | Specification / Description |
|---|---|
| Model Version | WR3000 1.0 |
| CPU | Details: 1.3 GHz Dual-Core, ARM Cortex-A53 |
| Memory / Storage |
Flash / ROM: 16 MB (128 Mbit) NOR DDR / RAM: 256 MB (2 Gbit) DDR3 |
| Wireless |
5 GHz Wi-Fi Speed: 2402 Mbps 2.4 GHz Wi-Fi Speed: 574 Mbps 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) with an Extra Stream 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) Wi-Fi Antennas: 4× Fixed FEM or PA/LNA: 5 GHz: 3× Internal / 2.4 GHz: 2× Internal Beamforming: True |
| Range Performance |
Maximum Range: 200 m (656 ft) Tested in open-space environments with minimal interference. Actual Wi-Fi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
| Wall Performance | • Two wooden walls with thickness < 10 cm (4″) • One concrete wall with thickness < 20 cm (7″) or two concrete walls with thickness < 10 cm (4″) |
| Interfaces |

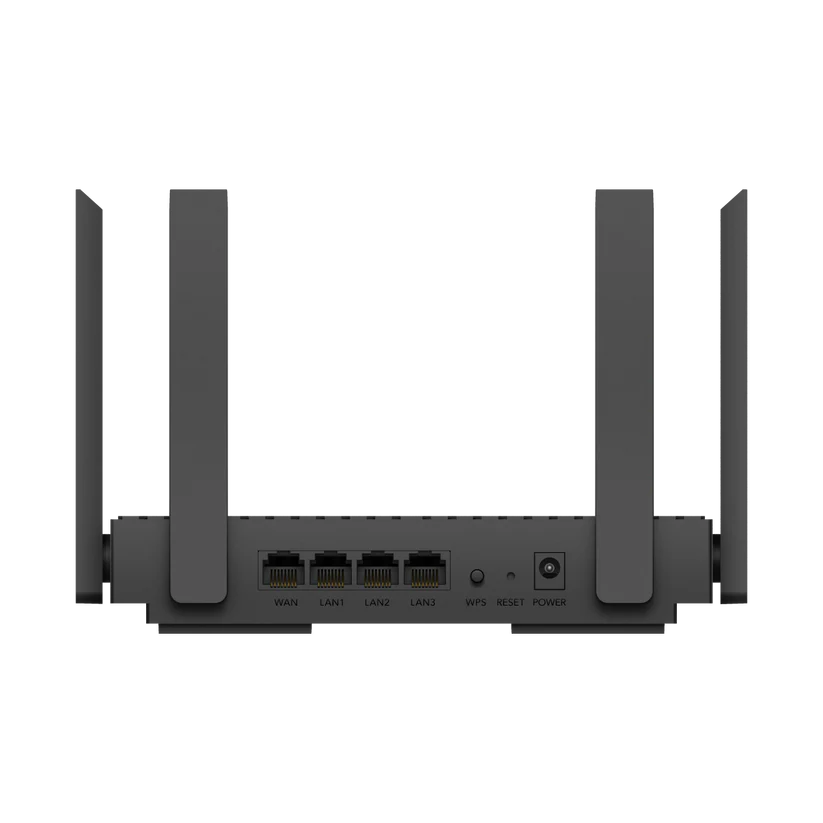

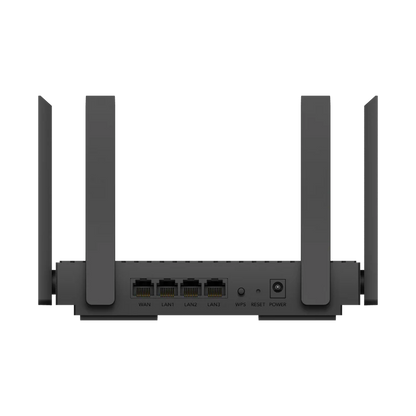

Gigabit RJ45 Ports: 4 Ethernet Notes: 1× WAN port, remaining ports are LAN ports |
| LED Indicators | System, Internet, WAN, LAN, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi |
| Physical Buttons | WPS Button, Reset Button |
| Power Input | DC Jack |
| Power |
Power Methods: DC DC Input: 12V 1A Power Adapter: Input: 100–240V, 50/60Hz AC / Output: 12V 1A DC Max Power Consumption: 11.5W Idle Power Consumption: 4.2W |
| Reliability / Environment |
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing |
| Certifications | FCC, CE |
| Mechanical |
Installation: Desktop, Wall-Mount Dimension: 183.3×109×35 mm (7.22×4.29×1.38 in) Product Weight: BR: 295 g (10.41 oz) / ZH: 295.8 g (10.43 oz) |

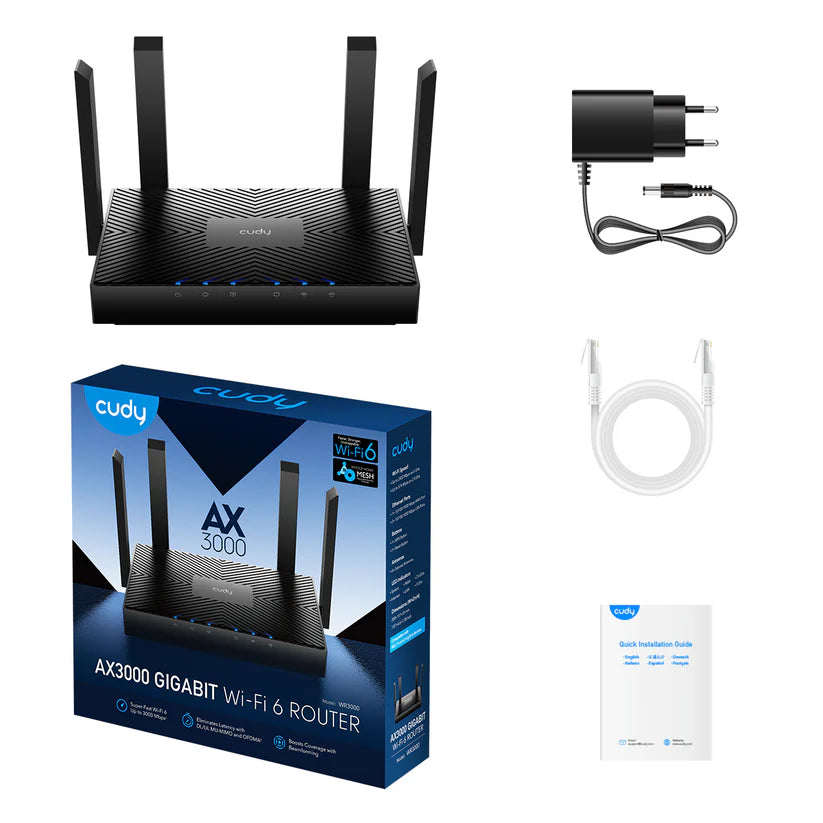

| Package Contents | WR3000, Power Adapter, Ethernet Cable, Installation Guide |
| Ordering Information |
Retail Package Weight: BR: 589 g (20.78 oz), EU: 614 g (21.66 oz), UK: 626 g (22.08 oz), US: 615 g (21.69 oz), ZH: 589.2 g (20.78 oz) Retail Package Dimension: 240×230×60 mm (9.45×9.06×2.36 in) Units per Carton: 20 Carton Dimension: 49.5×32.5×48 cm (19.49×12.8×18.9 in) Carton Gross Weight: BR: 12.9 kg (28.44 lbs), EU: 13.5 kg (29.76 lbs), UK: 13.6 kg (29.98 lbs), US: 13.1 kg (28.88 lbs), ZH: 12.8 kg (28.22 lbs) Carton Net Weight: BR: 11.8 kg (26.01 lbs), EU: 12.3 kg (27.12 lbs), UK: 12.5 kg (27.56 lbs), US: 12.3 kg (27.12 lbs), ZH: 11.8 kg (26.01 lbs) |
WR3000 1.0 — Software Specifications
| Category | Specification / Description |
|---|---|
| Model Version | WR3000 1.0 |
| Wireless |
Wi-Fi Standards: Wi-Fi 6 Max Wi-Fi Modulation: 1024-QAM Wi-Fi Efficiency: OFDMA, MU-MIMO, BSS Color Max Capacity: 512 Recommended Client Upper Limit: 200 Max Wi-Fi Channel Width: 160 MHz Wi-Fi Security: WPA/WPA2/WPA3 Guest Network: 2.4 GHz, 5 GHz WPS: True |
| General |
Operation Modes: Wi-Fi Router, Access Point, Range Extender, WISP, Client Mesh: Cudy Mesh Mesh Backhaul: Wireless Backhaul, Wired Backhaul Multi-Band Backhaul: True |
| WAN Mode | DHCP, Static IP, PPPoE, PPTP, L2TP |
| Network |
QoS: Per-User Rate Limiting DHCP: Address Reservation, DHCP Client List, Server IP Versions: IPv4/IPv6 |
| IPv6 Protocols | Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite |
| IPTV / VLAN | Bridge, Tag VLAN, VoIP VLAN, IPTV VLAN |
| TTL Customization | Extend, Spoof, Custom |
| IGMP | IGMP Proxy, IGMP Snooping |
| Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
| Firewall | SPI Firewall, DoS Protection, Block PING |
| Application Layer Gateway | IPSec, L2TP, PPTP, FTP, TFTP, H323, SIP, RTSP Passthrough |
| Utilities — VPN Server | WireGuard, OpenVPN, PPTP, L2TP |
| Utilities — VPN Client | WireGuard, OpenVPN, PPTP, L2TP |
| VPN Performance |
OpenVPN Client (UL/DL): 90 / 120 Mbps OpenVPN Server (UL/DL): 180 / 160 Mbps WireGuard Client (UL/DL): 224 / 230 Mbps WireGuard Server (UL/DL): 360 / 314 Mbps |
| DNS Options | DNS over TLS, Manual DNS, Rebind Protection, Override Clients’ DNS |
| DNS over TLS Providers | Cloudflare, Google, Quad9, Custom |
| Captive Portal | True |
| Wake on LAN | True |
| Online Detection | True |
| Management — Parental Controls | Profile Settings, Offline/Online Time, Pause Internet, Web Filter |
| All Devices Management | Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding |
| Per-Device Management | Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename |
| Content Management | Domain Filter, IP Filter |
| System — Local Control Method | Config Web Page, App Control |
| Remote Control Method | Config Page via HTTPS, App Control, TR069/TR098/TR111/TR143/TR181 |
| Firmware Upgrade | Local Update, App (Over-the-Air), Online Update |
| Reliability | Timed Reboot, Backup and Restore |
| Diagnostic Tools | Diagnosis, Ping, Traceroute, NSLookup, System Log |
| Languages | English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese |
| Dashboard — Panel | Internet Status, Mesh Status, Device Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version |
| Dashboard — Charts | Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed |
| Performance Notes | Actual wireless data throughput will vary based on network conditions, client limitations, and environmental factors. Connecting older Wi-Fi devices may reduce efficiency. Coverage claims are reference only — actual range depends on layout, walls, and interference. For best results, place the device centrally within the Wi-Fi area. |
