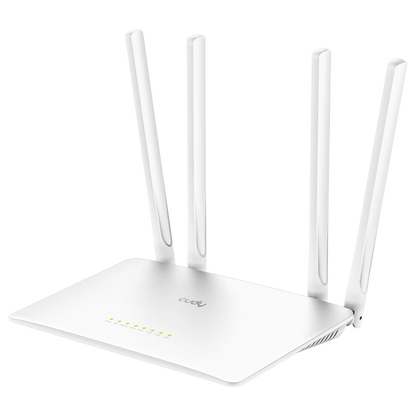

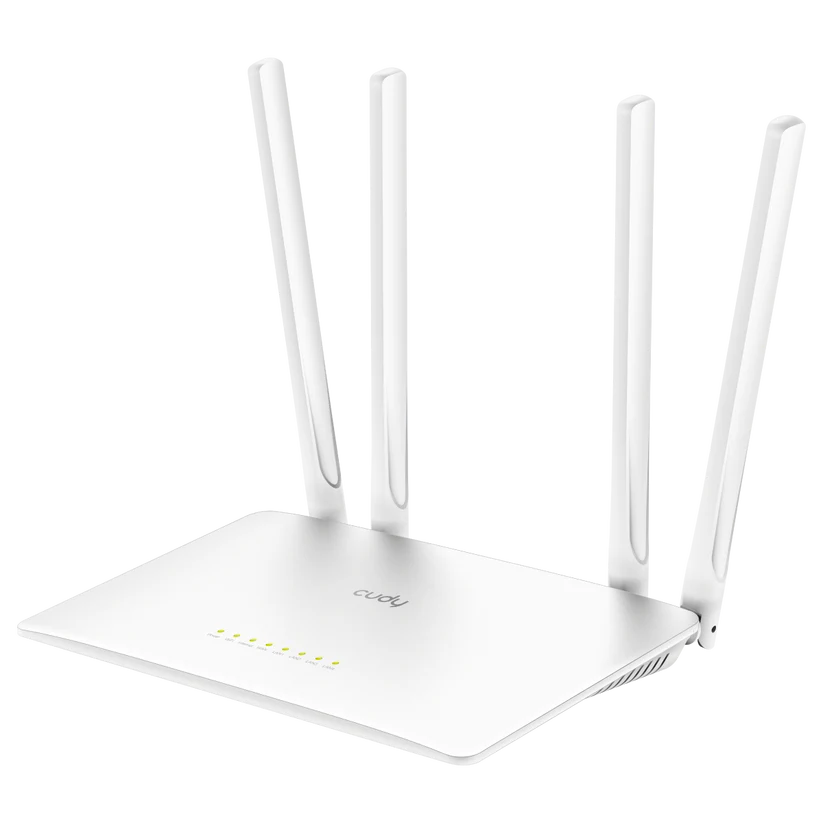

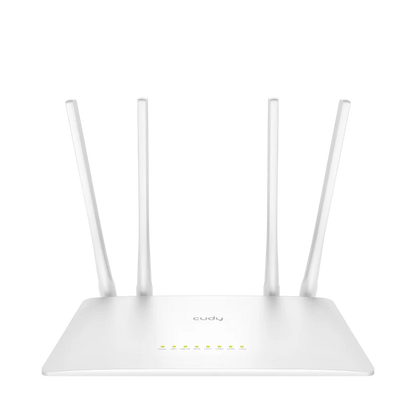

CUDY WR1200 AC1200 Dual-Band Wi-Fi Router
CUDY WR1200 AC1200 Dual-Band Wi-Fi Router
Regular price
30.000 JOD
Regular price
Sale price
30.000 JOD
Quantity
Couldn't load pickup availability
⚙️ Hardware Specifications — WR1200 2.0
| Category | Item | Specification / Details |
|---|---|---|
| Model Version | WR1200 2.0 | |
| CPU | CPU Details | 580 MHz Single-Core, MIPS24KEC |
| Memory / Storage | Flash / ROM | 8 MB (64 Mbit) NOR |
| DDR / RAM | 64 MB (512 Mbit) DDR2 | |
| Wireless | 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 4× Fixed | |
| Beamforming | Supported | |
| Range Performance | Maximum Range | Up to 170 m (558 ft) — tested in open environments |
| Wall Performance | - Two wooden walls (<10 cm / 4″) - One concrete wall (<20 cm / 7″) |
|

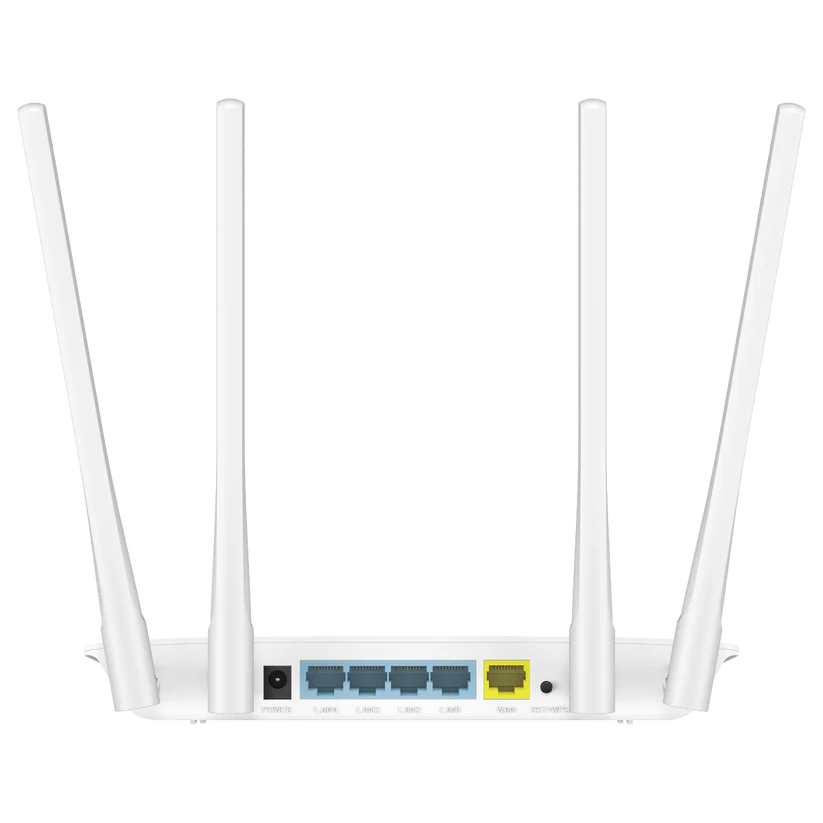

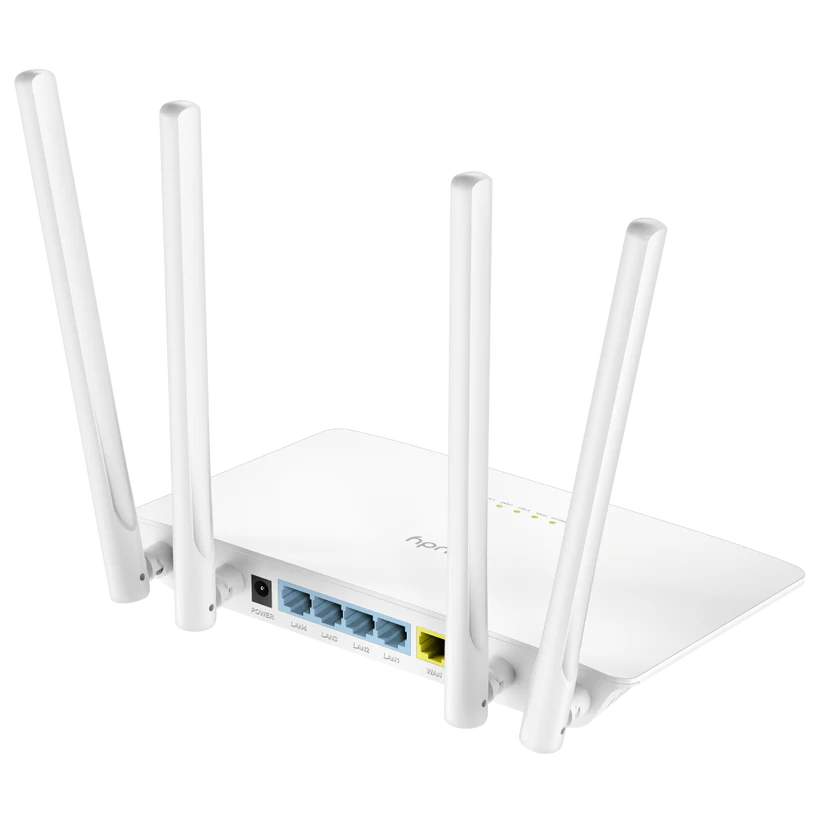

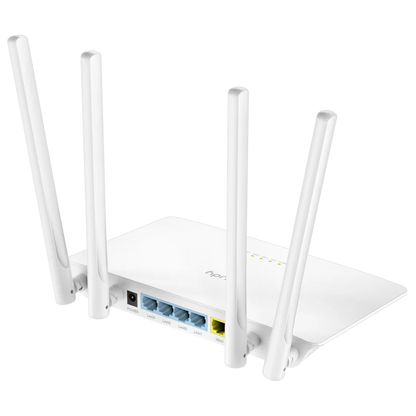

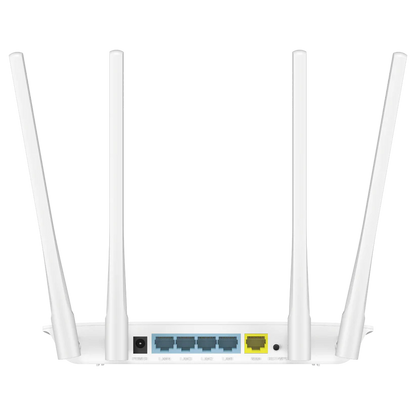

| Interfaces | 10/100 Mbps RJ45 Ports | 5 ports total |
| Ethernet Notes | 1× WAN port, 4× LAN ports | |

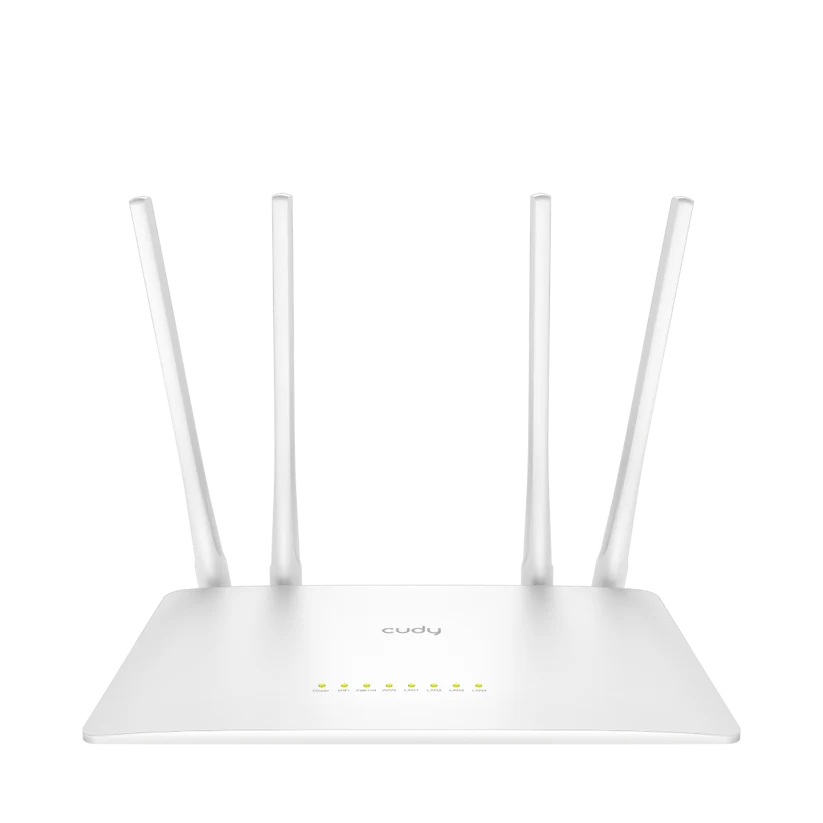

| LED Indicators | Power, Internet, Speed/Link/ACT (Ethernet), Wi-Fi | |
| Physical Buttons | WPS Button, Reset Button | |
| Power Input | DC Jack | |
| Power | Power Method | DC |
| DC Input | 12V 1A | |
| Power Adapter | Input: 100–240V AC, 50/60 Hz Output: 12V 1A DC |
|
| Reliability / Environment | Operating Temperature | 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉) |
| Storage Temperature | -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) | |
| Operating Humidity | 10% ~ 90% non-condensing | |
| Storage Humidity | 5% ~ 95% non-condensing | |
| Certifications | FCC, CE | |
| Mechanical | Installation Options | Desktop or Wall-Mount |
| Dimension | 220 × 135 × 30 mm (8.66 × 5.31 × 1.18 in) | |
| Product Weight | EU: 259 g (9.14 oz) / ZH: 258.8 g (9.13 oz) | |

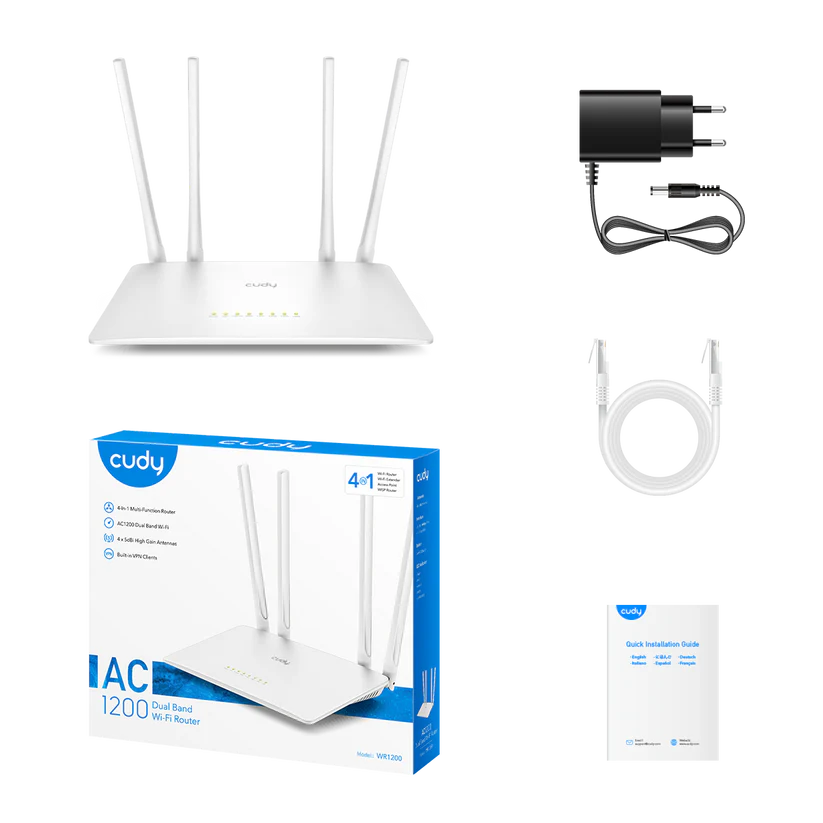

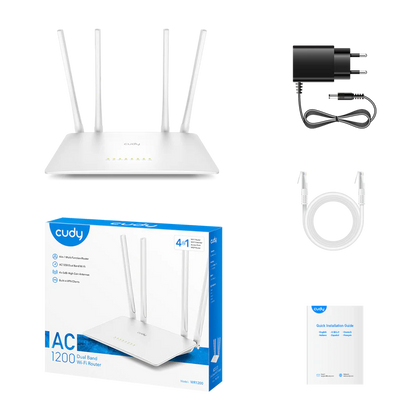

| Package Content | WR1200 Router, Power Adapter, Ethernet Cable, Installation Guide | |
| Ordering Information | Retail Package Weight | EU: 651 g (22.96 oz) / ZH: 625 g (22.05 oz) |
| Retail Package Dimensions | 290 × 250 × 64 mm (11.42 × 9.84 × 2.52 in) | |
| Units per Carton | 16 | |
| Carton Dimensions | 53.8 × 51.6 × 31.3 cm (21.18 × 20.31 × 12.32 in) | |
| Carton Gross Weight | EU: 11.9 kg (26.23 lbs) / ZH: 11.2 kg (24.69 lbs) | |
| Carton Net Weight | EU: 10.4 kg (22.93 lbs) / ZH: 10.0 kg (22.05 lbs) |
💻 Software Specifications — WR1200 2.0
| Category | Item | Specification / Details |
|---|---|---|
| Model Version | WR1200 2.0 | |
| Wireless | Wi-Fi Standards | Wi-Fi 5 |
| Max Wi-Fi Modulation | 256-QAM | |
| Wi-Fi Efficiency | MU-MIMO | |
| Wi-Fi Efficiency Note | MU-MIMO available on 5 GHz | |
| Max Capacity | 128 | |
| Recommended Client Upper Limit | 40 | |
| Max Wi-Fi Channel Width | 80 MHz | |
| Wi-Fi Security | WPA / WPA2 / WPA3 | |
| Guest Network | 2.4 GHz & 5 GHz | |
| WPS | Supported | |
| General | Operation Modes | Wi-Fi Router, Access Point, Range Extender, WISP, Client |
| WAN Mode | DHCP, Static IP, PPPoE, PPTP, L2TP | |
| Network | QoS | Per-User Rate Limiting |
| DHCP | Address Reservation, DHCP Client List, Server | |
| IP Versions | IPv4 / IPv6 | |
| IPv6 Protocols | Relay, Dynamic (SLAAC / DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite | |
| IPTV / VLAN | Bridge, Tag VLAN, VoIP VLAN, IPTV VLAN | |
| TTL Customization | Extend, Spoof, Custom | |
| IGMP | IGMP Proxy, IGMP Snooping | |
| Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ | |
| Firewall | SPI Firewall, DoS Protection, Block PING | |
| Application Layer Gateway | IPSec, L2TP, PPTP, FTP, TFTP, H323, SIP, RTSP Passthrough | |
| Utilities | VPN Client | OpenVPN, WireGuard, PPTP, L2TP |
| DNS Options | Manual DNS, Rebind Protection, Override Clients’ DNS | |
| Extra Utilities | Wake on LAN | Supported |
| Online Detection | Supported | |
| Management | Parental Controls | Profile Settings, Offline/Online Time, Pause Internet, Web Filter |
| All Devices Management | Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding | |
| Per-Device Management | Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename | |
| Content Management | Domain Filter, IP Filter | |
| System | Local Control Method | Configuration Web Page, App Control |
| Remote Control Method | TR069 / TR098 / TR111 / TR143 / TR181, Config Page via HTTP | |
| Firmware Upgrade | Local Update | |
| Reliability | Timed Reboot, Backup & Restore | |
| Diagnostic Tools | Diagnosis, Ping, Traceroute, NSLookup, System Log | |
| Languages | English, German, Spanish, French, Hebrew, Italian, Portuguese, Ukrainian, Russian, Korean | |
| Dashboard | Panels | Internet Status, Devices Management, WAN/LAN/WISP/Wi-Fi/VPN/DHCP Server Status, System Version |
| Charts | Internet Speed, WISP Speed, Wi-Fi Speed |
⚙️ Performance Notes
1️⃣ Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
2️⃣ Actual performance for multiple devices may be affected by the types of applications used, total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Additionally, using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
3️⃣ Wireless coverage claims serve as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.
