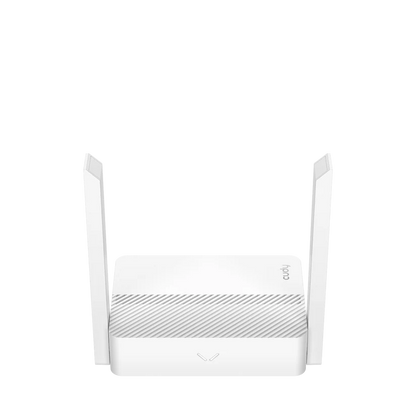

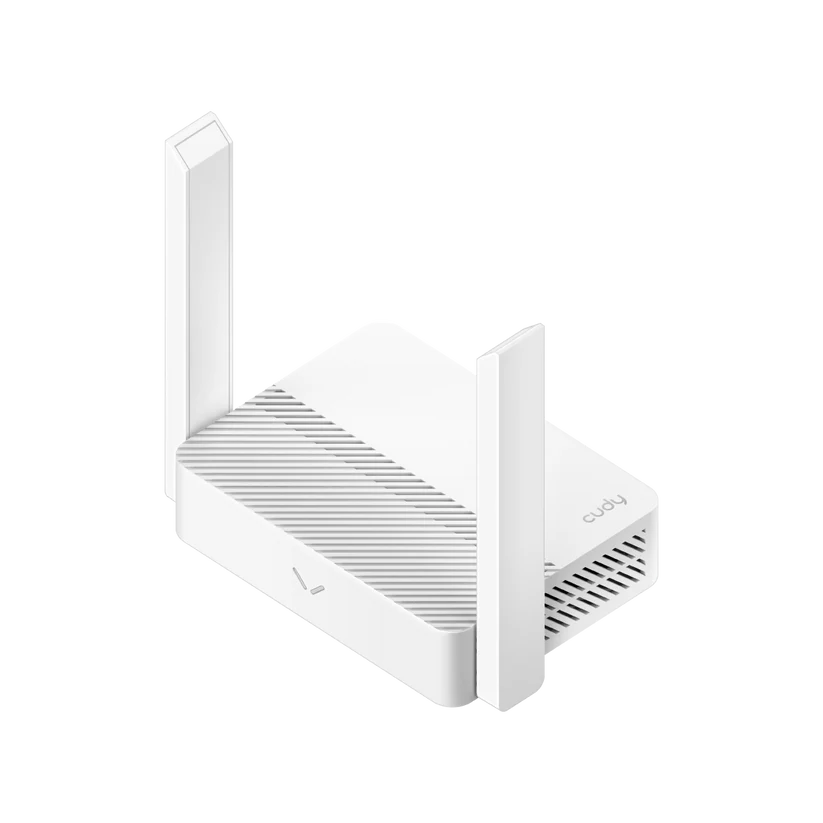

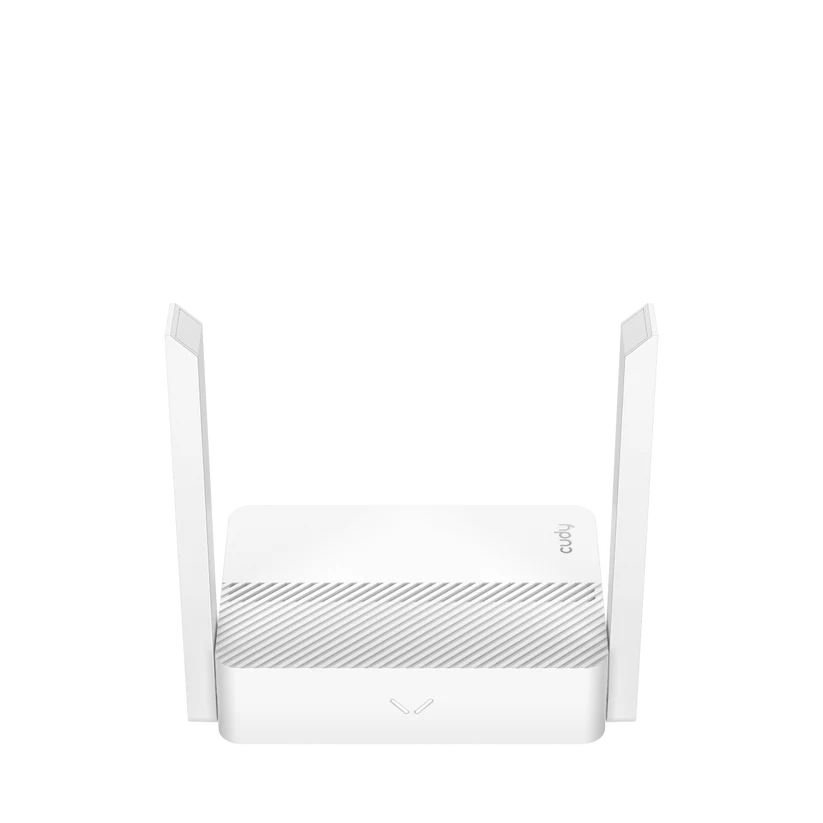

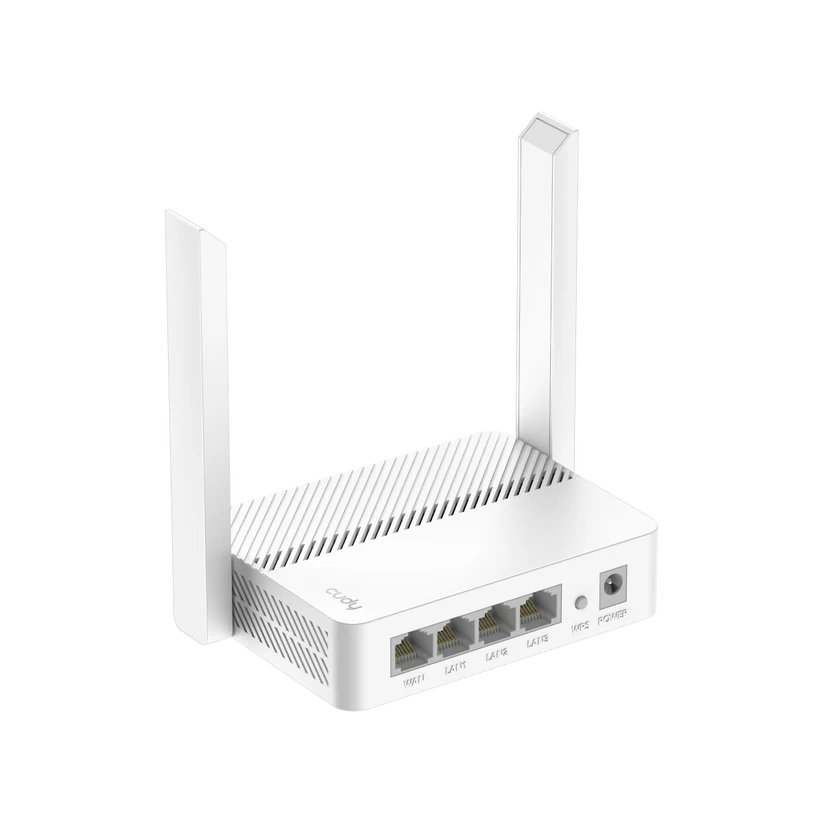

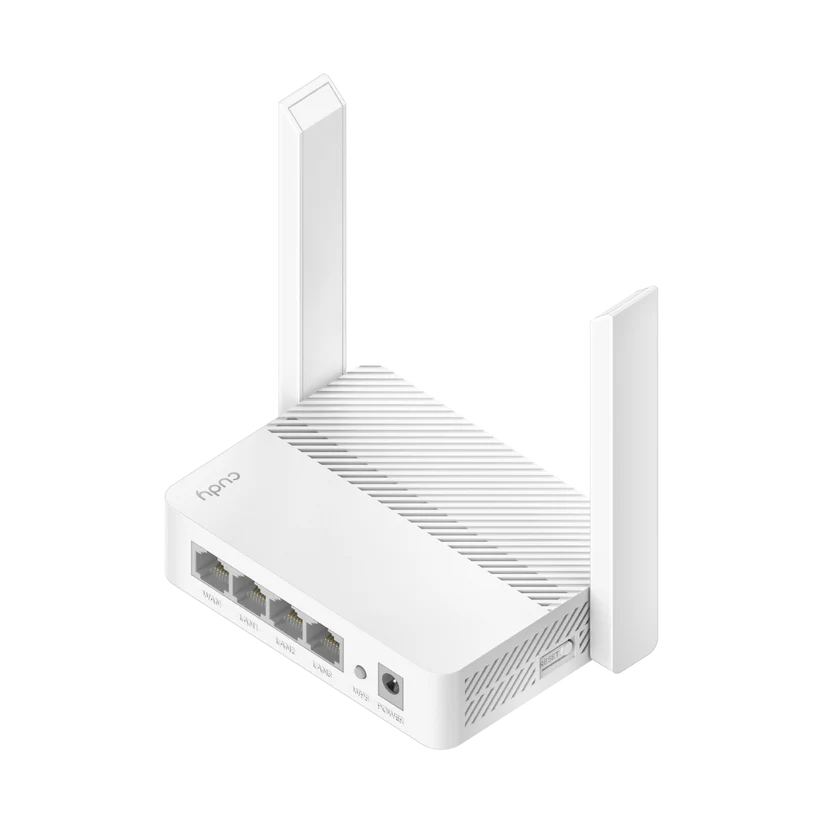

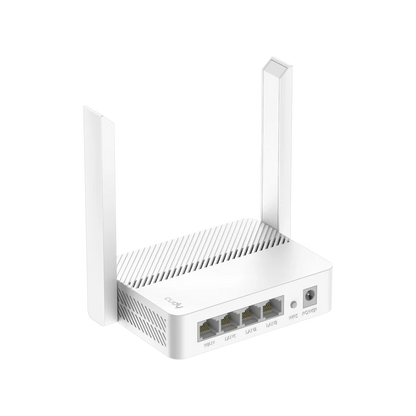

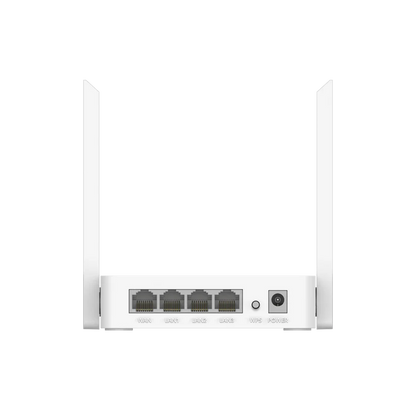

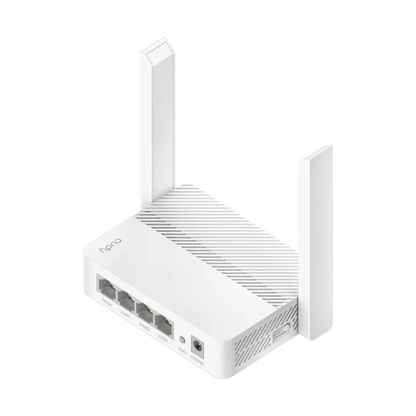

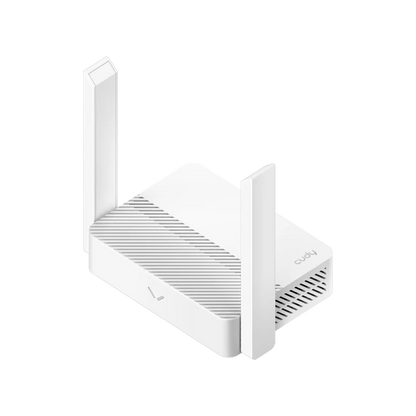

CUDY WR300 Multi-Mode Wi-Fi Router
CUDY WR300 Multi-Mode Wi-Fi Router
Regular price
25.000 JOD
Regular price
Sale price
25.000 JOD
Quantity
Couldn't load pickup availability
WR300 1.0 — Hardware Specifications
| Category | Specification / Description |
|---|---|
| Model Version | WR300 1.0 |
| CPU | 580 MHz Single-Core, MIPS24KEC |
| Memory / Storage |
Flash (ROM): 8 MB (64 Mbit) NOR DDR (RAM): 64 MB (512 Mbit) DDR2 |
| Wireless |
2.4 GHz Wi-Fi Speed: 300 Mbps 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 2 × Fixed |
| FEM or PA/LNA | 2.4 GHz: 2 × Internal |
| Range Performance | Max: 130 m (427 ft) Tested in open-space environments with minimal interference. Actual Wi-Fi range may vary depending on layout and wall materials. |
| Wall Performance | One wooden wall (thickness < 10 cm / 4") One concrete wall (thickness < 10 cm / 4") |
| Interfaces |

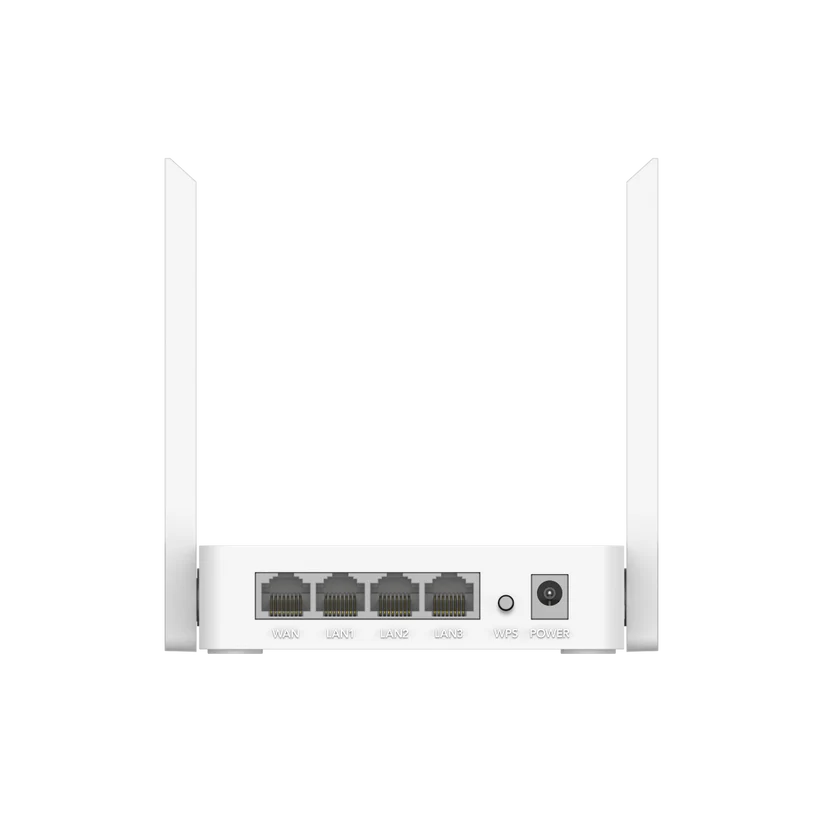

10/100 Mbps RJ45 Ports: 4 Ethernet Notes: 1 × WAN port, the rest are LAN ports |
| LED Indicator | System |
| Physical Buttons | WPS Button Reset Button |
| Power Input | DC Jack |
| Power |
Power Method: DC DC Input: 5V 1A Power Adapter: Input: 100–240 V AC, 50/60 Hz Output: 5V 1A DC |
| Reliability / Environment |
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing |
| Certifications | FCC, CE |
| Mechanical / Installation | Desktop |
| Dimensions | 118 × 80 × 27.5 mm (4.65 × 3.15 × 1.08 in) |
| Product Weight | 120 g (4.23 oz) |

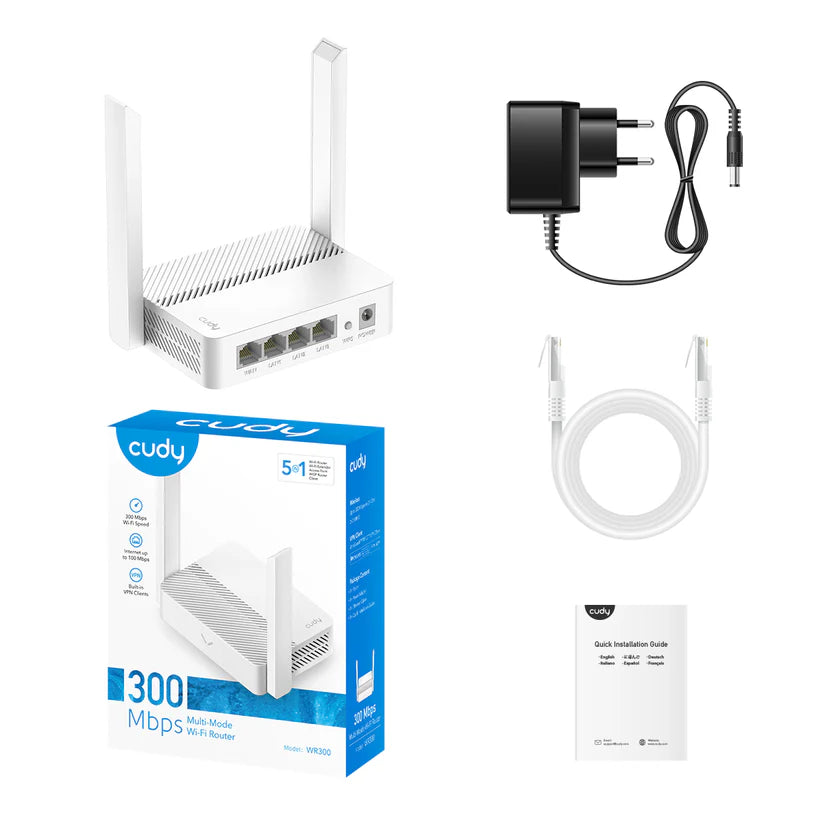

| Package Contents | WR300 Power Adapter Ethernet Cable Installation Guide |
| Ordering Information |
Retail Package Weight: EU: 336 g (11.85 oz) Retail Package Dimensions: 176 × 140.5 × 56 mm (6.93 × 5.53 × 2.2 in) Units per Carton: 40 Carton Dimensions: 60 × 30 × 37.5 cm (23.62 × 11.81 × 14.76 in) Carton Gross Weight: EU: 14.4 kg (31.75 lbs) Carton Net Weight: EU: 13.4 kg (29.54 lbs) |
WR300 1.0 — Software Specifications
| Category | Specification / Description |
|---|---|
| Model Version | WR300 1.0 |
| Wireless |
Wi-Fi Standards: Wi-Fi 4 Max Wi-Fi Modulation: 64-QAM Max Capacity: 64 Recommended Client Upper Limit: 30 Max Wi-Fi Channel Width: 40 MHz Wi-Fi Security: WPA / WPA2 / WPA3 Guest Network: 2.4 GHz WPS: True |
| General |
Operation Modes: Wi-Fi Router, Access Point, Range Extender, WISP, Client Mesh: Cudy Mesh Mesh Backhaul: Wireless Backhaul, Wired Backhaul WAN Mode: DHCP, Static IP, PPPOE, PPTP, L2TP |
| Network |
QoS: Per-User Rate Limiting DHCP: Address Reservation, DHCP Client List, Server IP Versions: IPv4 / IPv6 IPv6 Protocols: Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite IPTV/VLAN: Bridge, Tag VLAN, VoIP VLAN, IPTV VLAN TTL Customization: Extend, Spoof, Custom IGMP: IGMP Proxy, IGMP Snooping |
| Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
| Firewall | SPI Firewall, DoS Protection, Block PING |
| Application Layer Gateway | IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, FTP Passthrough, TFTP Passthrough, H323 Passthrough, SIP Passthrough, RTSP Passthrough |
| Utilities |
VPN Client: WireGuard, PPTP, L2TP DNS Options: DNS over TLS, Manual DNS, Rebind Protection, Override Clients’ DNS DNS over TLS Providers: Cloudflare, Google, Quad9, Custom Wake on LAN: True Online Detection: True |
| Management |
Parental Controls: Profiles Settings, Offline Time, Online Time, Pause the Internet, Web Filter All Devices Management: Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding Per-Device Management: Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename Content Management: Domain Filter, IP Filter |
| System |
LED Control: True Local Control Method: Config Web Page, App Control Remote Control Method: Config Page via HTTPS, TR069 / TR098 / TR111 / TR143 / TR181 Firmware Upgrade: Local Update |
| Reliability | Timed Reboot, Backup and Restore |
| Diagnostic Tools | Diagnosis, Ping, Traceroute, NSLookup, System Log |
| Languages Supported | English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese |
| Dashboard |
Panel: Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version Charts: Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed |
| Performance Notes | 1️⃣ Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location. 2️⃣ The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. 3️⃣ For optimal coverage, place the device in a central location within the area requiring Wi-Fi. |
